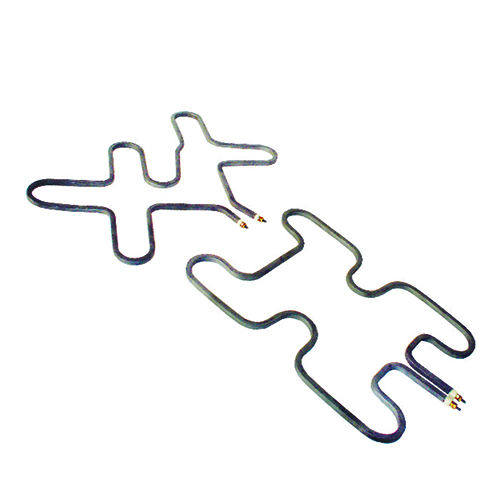

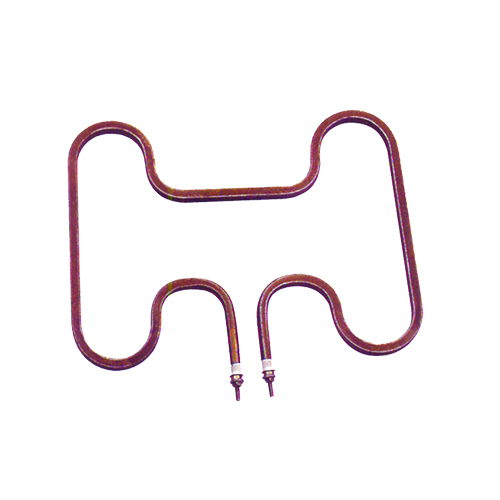

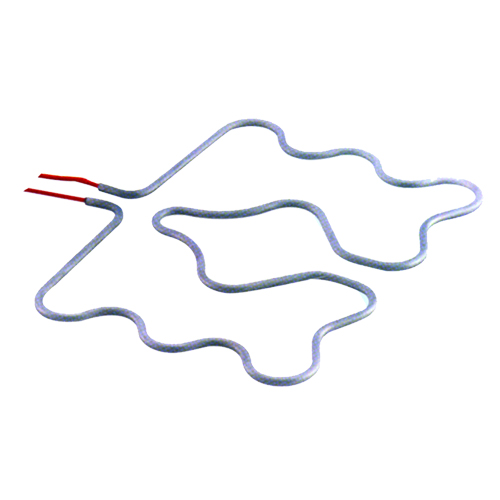

Manifold Heaters

As a leading Manifold Heater Manufacturer, Elmec specializes in highly compressed tubular heaters – an advanced solution for injection manifolds. Our square-section heaters ensure excellent heat exchange, with a precise installation method involving careful hammering and pressing for optimal surface contact. This technique enhances thermal exchange, prolongs heater life, and reduces energy loss. Trust Elmec, one of the Best industrial furnace dealers in India, for cutting-edge industrial furnace solutions. Customized sizes include 6/62, 6X62, 8mm round, 8.3mm round, 8.6mm round, and 9mm round.

Installation

Technical Specification And Tolerances

  • Wattage +5% – 10%
  • Resistance +10% – 5%
  • Die electric strength 1500V
  • Insulation > 5M W
  • Length + 1%
  • Cross Section +0.15mm
  • The maximum temperature on Heater Surface 700°C
Tubular heaters are supplied in AISI 321 tube. Any non-standard cross section, length, watts, volts and sheath materials can be manufactured and supplied on request. Manifold Heaters are annealed to acquire malleability, can be bent to any complex shape.
