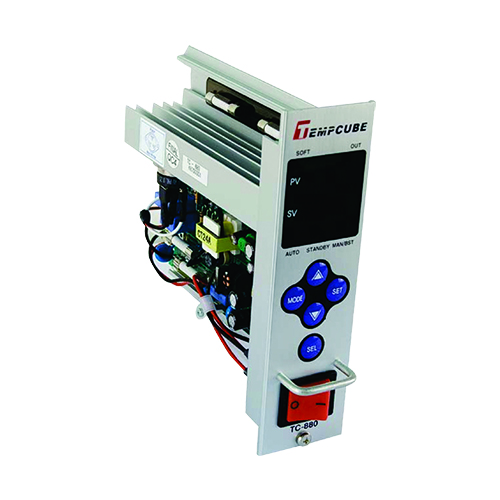

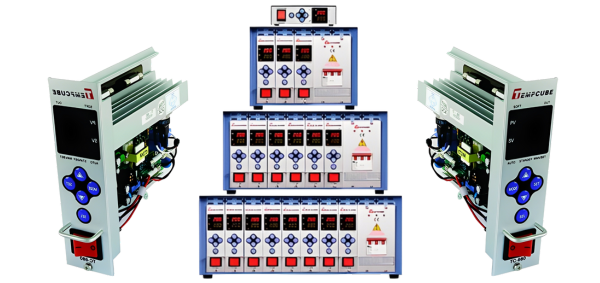

Hot Runner Controller

Elmec takes pride in offering highly advanced and user-friendly hot runner controller suppliers in India designed to optimize performance in various applications. Our hot runner controllers feature:

Hot Runner Temperature Controller Features:

  1. Advanced Functionality:

    Elmec’s hot runner temperature controllers come with advanced features such as soft start, auto/manual mode, TC open, TC reverse indication, heater open, heater short indication, and fuse fail indication.

  2. User-Friendly Interface:

    Designed with the user in mind, our controllers provide a user-friendly interface for easy operation and monitoring of temperature control processes.

  3. I/O Card with Multi-Pin Connectors:

    The hot runner controllers are equipped with a 5-meter I/O card, offering a wide choice of multi-pin connectors for seamless integration into various systems.

  4. Reliable Indications:

    Elmec’s hot runner controllers ensure reliable indications for TC (Thermocouple) open, TC reverse, heater open, heater short, and fuse fail conditions, enhancing the efficiency and safety of the system.
  • Thermocouple Calibration Accuracy : 0.10c
  • Control Accuracy : ±30c from Set point
  • Control Algorithm : PID, Auto Tuning
  • Operation Range : 30~4000c (86~752’F)
  • Power Output Range : 15Amp/Zone (3600W/Zone)
  • Standby Temperature : User selectable (30~4000c)
  • Boost Mode : 1~99min. 0~100%output
  • Sensor : Thermocouple Type J, K
  • Input Voltage : 90~250VAC, 50/60 Hz
